PTFE Yarn Braided Hose

PTFE inner liner with a high-tenacity textile outer braid — lightweight, non-conductive, and cost-effective for pharma and food service.

Home›PTFE Hose›PTFE Yarn Braided Hose
Chemically Inert
A PTFE hose is chemically inert to a majority of alkalis, moisture and acids even under extreme pressure and temperature.
Pressure & Temperature Resistance
A PTFE hose is resistant to breakage even under pressure and temperature. At most it would deform under heavy load, but not break — unlike ordinary hoses. This makes it quite useful for applications dealing with extreme centrifugal forces.
Thermal Stability
A PTFE hose has a stable nature against temperature fluctuations. It also cools down in no time without cracking.
Extreme Flexibility
A PTFE hose provides extreme flexibility, allowing installation in tight or dynamic routing environments.
Lightweight
Yarn braid weighs significantly less than equivalent SS304 wire braid, making handling and installation easier.
Cost-Effective
Yarn braiding reduces cost compared to steel braid counterparts while maintaining excellent PTFE liner performance.

About PTFE Yarn Braided Hose

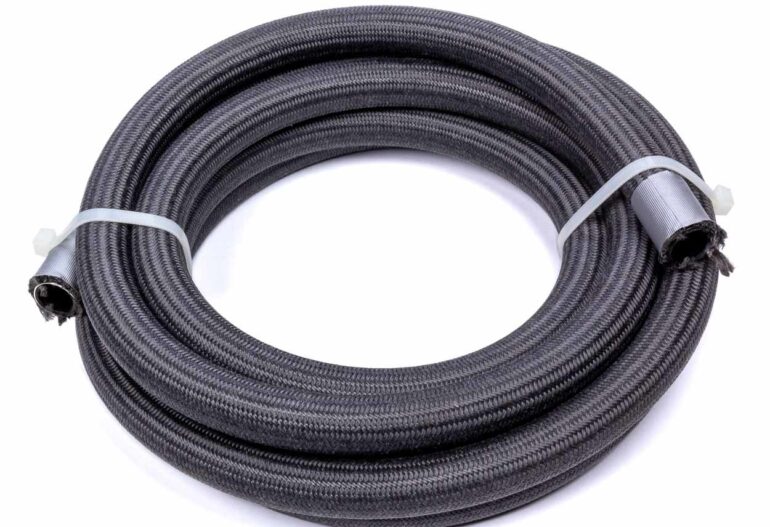

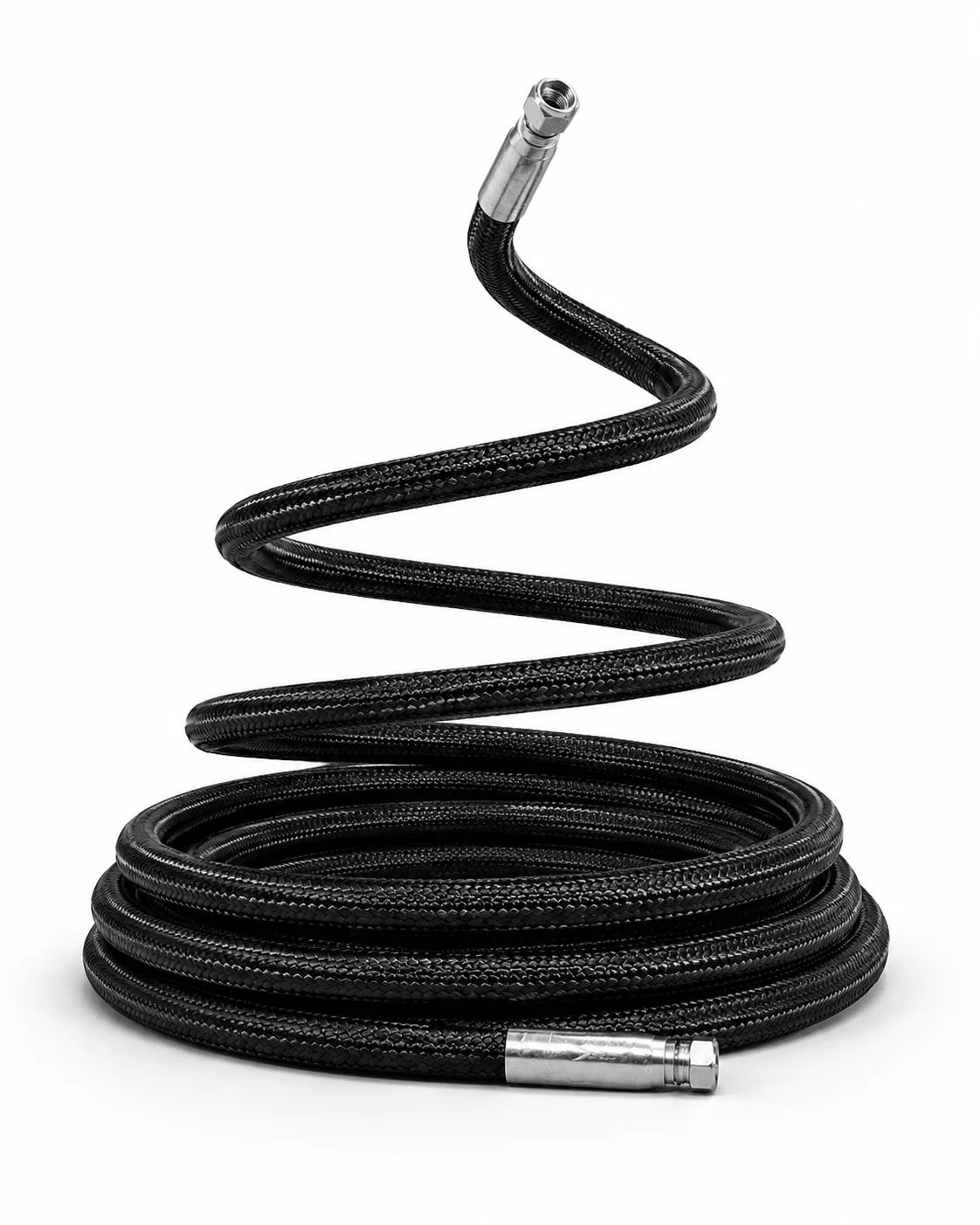

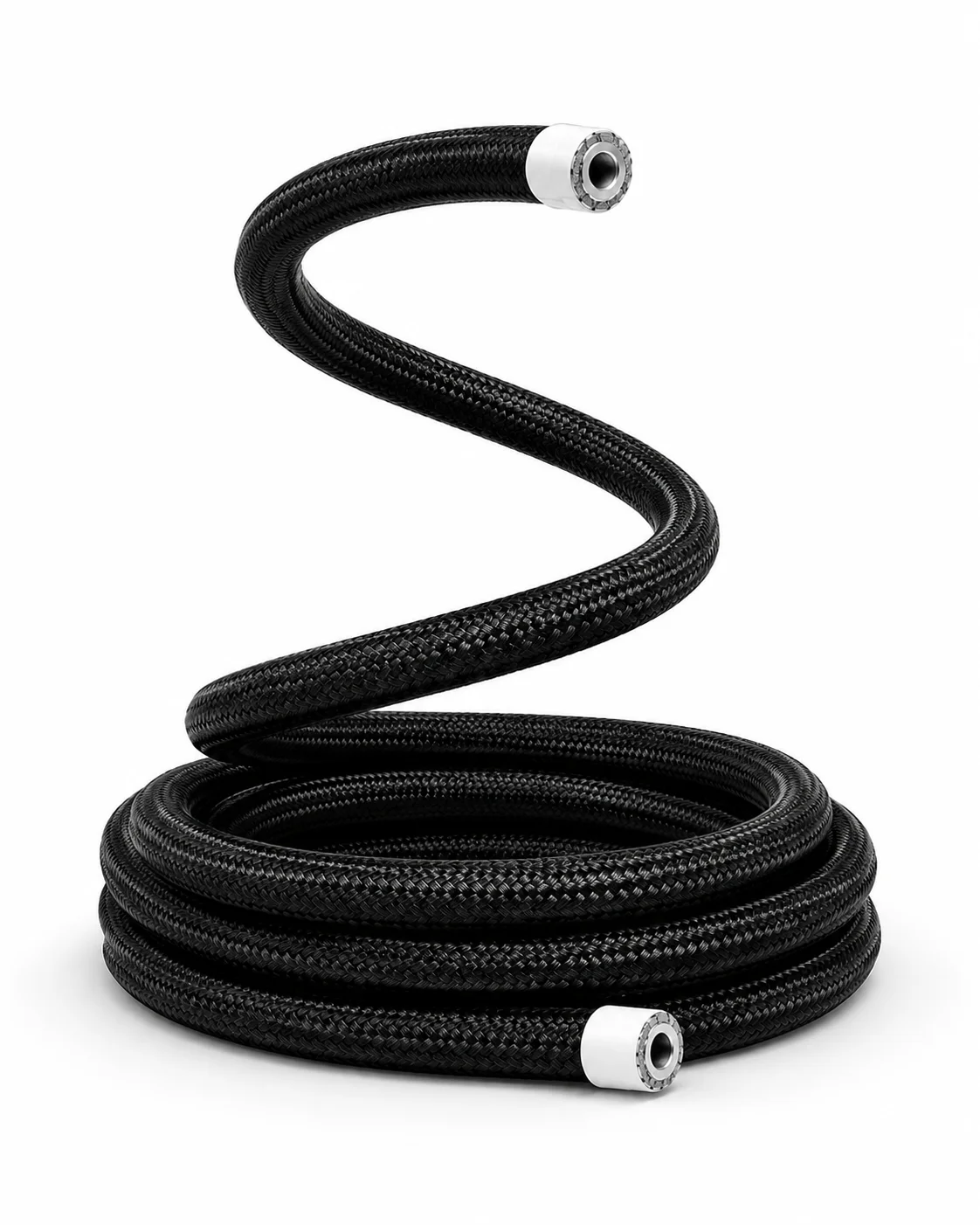

PTFE yarn braided hose consists of a PTFE liner on the inside and an outer protective cover made up of yarn on the outside. This cover provides protection to the inner liner by increasing its pressure withstanding capacity. The yarn braiding greatly helps increase the flexibility of the hose while decreasing the cost of the hose as compared to its steel counterpart, and can be used in those places, like automobiles, where it is concerned with the transmission of oil and water.

When used appropriately, the proper type of PTFE hose can serve various industrial purposes with great efficiency. However, there are some common myths which industries have about PTFE products, which make industries choose the wrong product for an application.

Product Gallery

Product Images

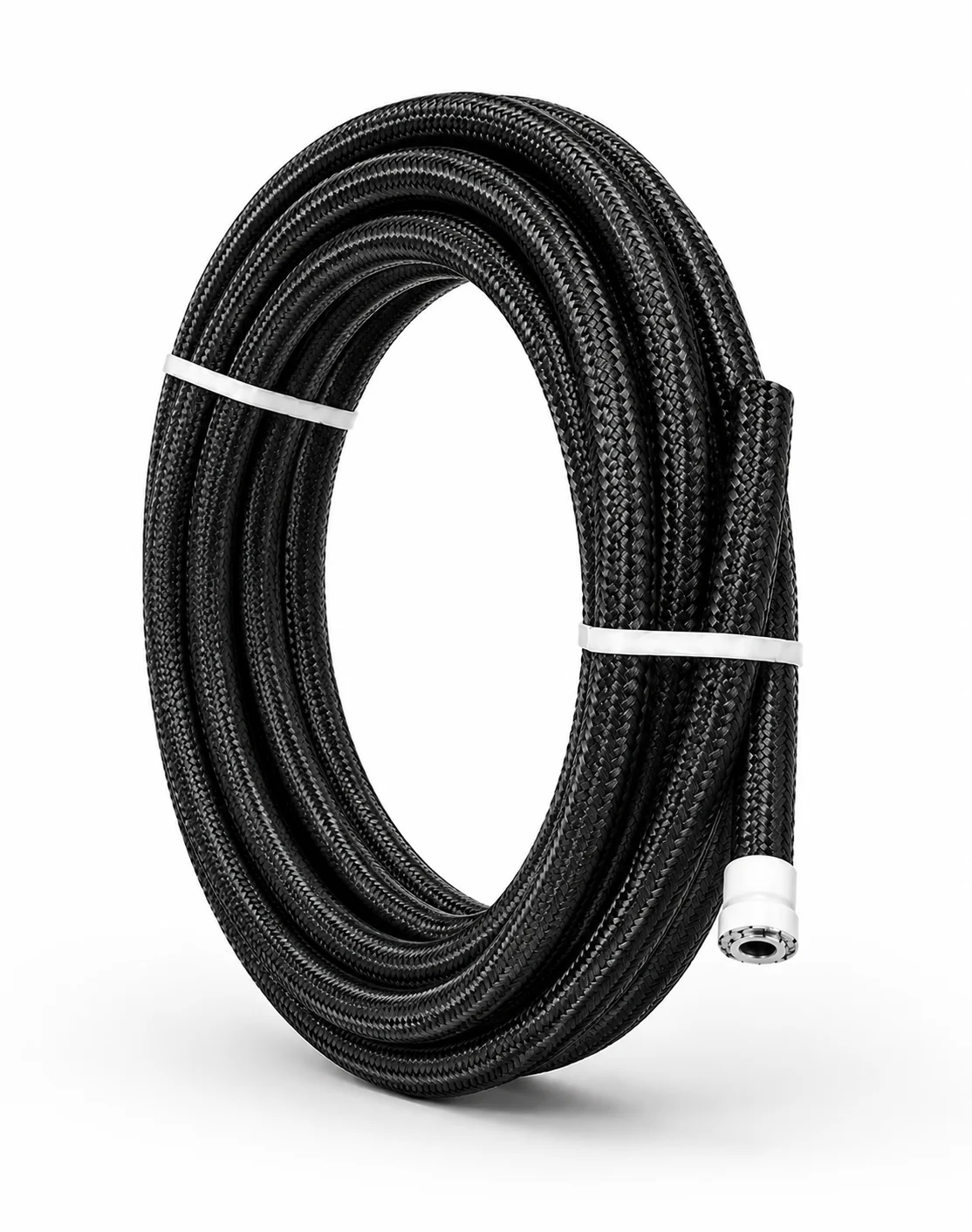

Black Yarn Hose
⤢ View Full Size
Black Yarn Hose
Selection Guide

Classification of PTFE Hose

▸
Myth: A PTFE Hose is Very Costly
Though the PTFE paste used to make good quality lines is a high grade material and hence higher in cost, when compared to the entire lifecycle cost and safety aspect, the hose is a much more cost-effective choice. In tire manufacturing for example, an OEM rubber hose must be replaced within a couple of weeks — a PTFE hose needs no replacement even after six months of usage. PTFE hoses have the lowest cost of ownership.
▸
Myth: PTFE Yarn Braided Hose Gets Easily Twisted and Crushed
In a dynamic application, a PTFE hose may get twisted and crushed when not used in the proper manner. In applications where there is a higher probability of twisting or crushing, the right solution is to use a PTFE yarn braided hose and install it according to the installation guidelines.
Technical Data

Specifications & Standards

ParameterValue / Range
Inner LinerVirgin PTFE — smooth bore
Outer BraidHigh-tenacity polyester or aramid yarn
Temperature Range–65°C to +200°C continuous (textile braid limit)
Electrical ConductivityNon-conductive — no metallic components
Working PressureModerate — suitable for pharma and food process pressures
FDA Compliance21 CFR 177.1550 (PTFE inner)
Chemical ResistanceNear-universal — PTFE liner resists all common acids, bases, and solvents
End FittingsSS304 / SS316 — BSP, NPT, DIN configurations
Braid Material OptionsPolyester (standard) · Aramid (high-performance on request)
Weight vs SS Braid30–50% lighter — easier handling and installation
Where It's Used

Applications

✓Automotive — oil and water transmission lines
✓Pharmaceutical API transfer and solvent handling
✓Food and beverage processing — oil, syrup, spirit, dairy lines
✓Water treatment and potable water systems
✓Chemical dosing at moderate pressures
✓Electrical environments where metallic braid is a safety concern
✓Biotech and laboratory fluid handling
✓Low-pressure steam and hot-water connections
