The global process gas delivery tubing market is expanding, projected to grow 5.8% a year through 2035. Driven by regional semiconductor initiatives such as the US CHIPS Act and the European Chips Act, new fabs are being built at an unprecedented rate.

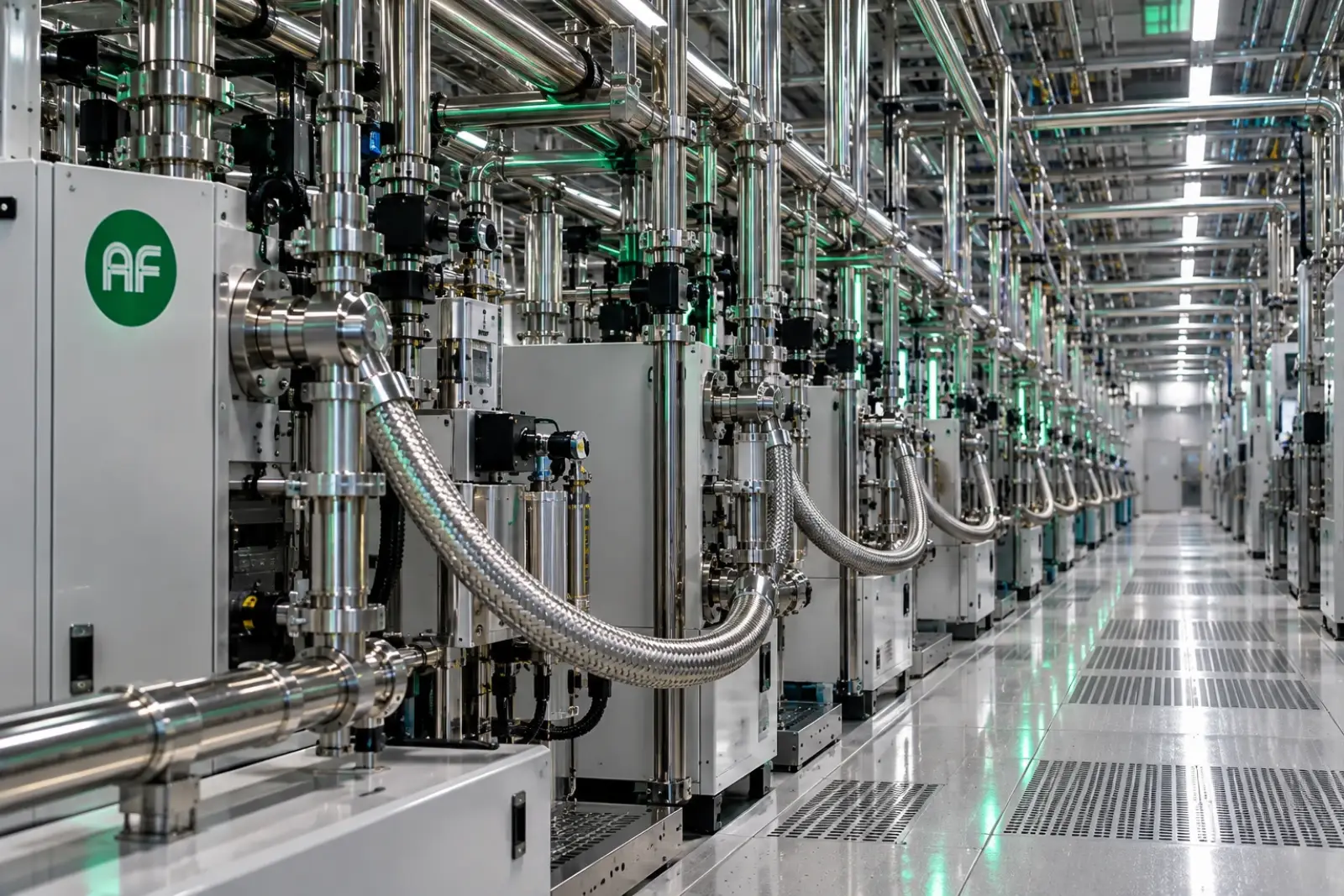

Central to their ultra-high-purity (UHP) gas distribution is the high purity SS braided PTFE hose. Here is why this hose architecture is critical to modern fab engineering.
Semiconductor Expansion and the Shift to PTFE
Rigid UHP stainless steel piping has long been the primary line for gas distribution. But tool hookups, gas cabinets, OEM sub-fab connections and vibration isolation all need flexibility without sacrificing UHP cleanliness.
With high-vibration tool sub-skids or corrosive supply lines, rigid tubing is prone to fatigue failure. A high purity PTFE SS braided hose solves this with:
- Dynamic flexibility: absorbs mechanical strain, thermal expansion and tool-induced vibration.
- Pressure resistance: high-tensile stainless braiding handles working pressures up to several thousand PSI, depending on diameter.
- Permeation control: heavy-wall or convoluted PTFE liners minimise toxic gas permeation into sub-fab air.
Performance comparison: UHP piping options
| Feature | Electropolished SS rigid tubing | High purity PTFE SS braided hose |
|---|---|---|
| Vibration absorption | Poor | Excellent |
| Corrosion resistance (acids) | Moderate to high | Exceptional |
| Flexibility / bend radius | None (rigid) | High |
| Field tool hookup | Complex | Rapid |
Cost Optimisation and Preventive Maintenance Cycles
Fab operators run preventive maintenance (PM) cycles every 3 to 5 years, inspecting or replacing tubing and hose lines to catch micro-degradation. Low-quality fluid-handling components lead to premature failure, gas leaks or batch contamination that can cost millions in lost wafers.
Certified high purity PTFE hose lines from Advanced Fluro reduce total cost of ownership. Our hoses are manufactured under strict ISO cleanroom conditions, high-pressure tested and helium leak-checked before shipment.
Frequently Asked Questions
Why are flexible hoses used instead of rigid UHP piping?
Tool hookups, gas cabinets and vibrating sub-fab equipment need flexibility. Rigid tubing in these locations is prone to fatigue failure.
How much pressure can a PTFE SS braided hose handle?
High-tensile stainless braiding allows working pressures up to several thousand PSI, depending on the hose diameter.
How often are fab gas lines replaced?
Preventive maintenance cycles typically run every 3 to 5 years, when tubing and hose lines are inspected or replaced.
Talk to Advanced Fluro
Planning gas distribution for a new or expanding fab? Request a quote or technical consultation, call +91 96990 55600 or email contact@aftubes.com.
