In semiconductor fabs, the route from central gas storage to individual wafer tools runs through intricate piping networks. Gas cabinets, valve manifold boxes (VMBs), sub-fab chemical delivery skids and tool hookups are critical junctions where flexible conduits are essential. A high purity SS braided PTFE hose keeps these points running continuously and leak-tight.
UHP Gas Distribution Architecture
A typical route from the bulk gas yard to the process tool, and where flexible PTFE hose is used:
- Bulk gas yard: central storage of process gases.
- Gas cabinet or cylinder bank: high purity PTFE SS braided hose pigtails connect cylinders.
- Valve manifold box (VMB): distributes gas to individual tool lines.
- Sub-fab equipment hookup: flexible PTFE SS braided hoses absorb tool vibration.
- Wafer processing tool: the point of use.

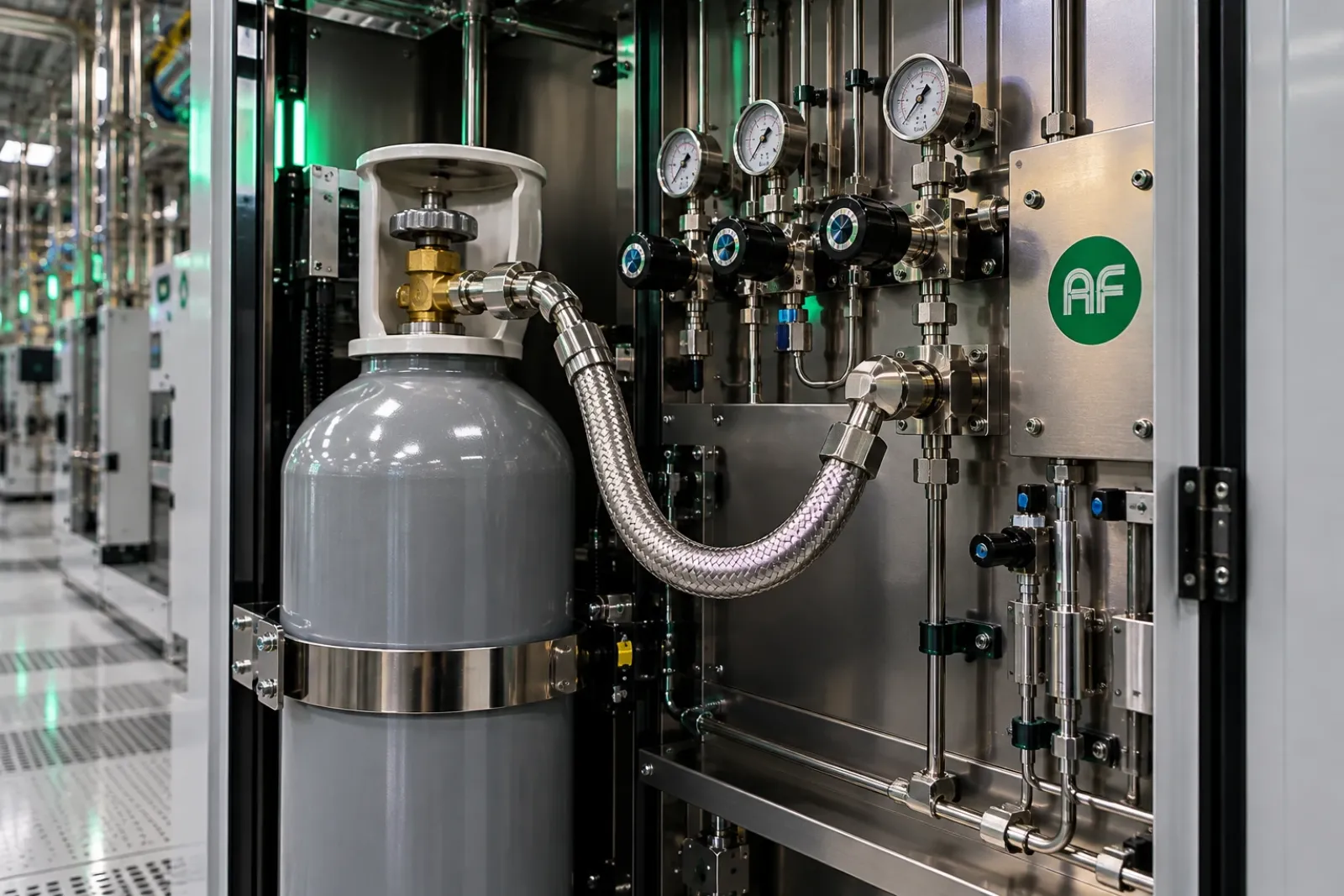

Gas Cabinet Pigtails and Flexible Connections
Gas cabinets house compressed cylinders of toxic, pyrophoric or highly corrosive specialty gases. Changing cylinders means repeatedly connecting and disconnecting flexible jumper lines, known as pigtails. Rigid stainless lines can kink, work-harden or crack under this constant handling.
A flexible high purity PTFE SS braided hose provides the bend radius and durability pigtails need. The stainless braid protects against abrasion and pressure surges, while the PTFE core resists degradation during aggressive purge cycles.
Sub-Fab Tool Hookup Integration
In the sub-fab, vacuum pumps, chillers and gas scrubbers run continuously and generate vibration that can crack rigid welds over time. Installing flexible high purity PTFE hose lines between rigid stainless headers and process tools isolates that vibration and protects mass flow controllers (MFCs) and precision valves from fatigue.
Advantages of Advanced Fluro Gas Delivery Components
- Leak-tight end connections: custom swaged VCR, tube stub or metal-gasket face seal fittings.
- Cleanroom packaging: double-bagged in ISO Class 5 cleanrooms to prevent particulate contamination before installation.
- Factory tested: 100% hydrostatic and helium tested for zero-leak performance with volatile process gases.
Frequently Asked Questions
What is a gas cabinet pigtail?
A flexible jumper line that connects a gas cylinder to the cabinet manifold and is disconnected every time the cylinder is changed.
Why not use rigid stainless steel for pigtails?
Repeated handling can kink, work-harden or crack rigid stainless lines. A braided PTFE hose flexes without that damage.
How does flexible hose protect sub-fab equipment?
It isolates vibration from pumps, chillers and scrubbers, protecting mass flow controllers and precision valves from mechanical fatigue.
Talk to Advanced Fluro
Fitting out gas cabinets or tool hookups? Request a quote or technical consultation, call +91 96990 55600 or email contact@aftubes.com.
