Standard PTFE is an excellent electrical insulator -- which is exactly the problem when it's used to transfer a volatile fluid at velocity. Insulating materials don't dissipate the electrostatic charge that builds up as fluid flows through a hose; they let it accumulate until it discharges somewhere, and in the presence of flammable vapour, that discharge can be an ignition source. Static dissipative (conductive) PTFE hose exists specifically to solve this problem, and understanding when it's required -- not just when it's a nice-to-have -- is a genuine safety question, not a spec sheet checkbox.
Key Takeaways
- Electrostatic charge generation in a hose scales with flow velocity and fluid conductivity -- low-conductivity solvents and fuels moving fast are the highest-risk combination.
- Standard PTFE hose is an insulator and does not dissipate static charge; carbon-loaded conductive PTFE inner liner is required for that function.
- A surface resistivity below 10⁶ Ω is the typical target for static-dissipative PTFE hose used in hazardous-area service.
- Conductive hose only works as a system -- grounding continuity through fittings and the connected equipment matters as much as the hose liner itself.
- ATEX/IEC 60079 guidance is the relevant reference framework for classified-area fluid transfer equipment.
How Static Charge Actually Builds Up in a Hose
Streaming current -- the electrostatic charge generated by fluid flowing past a solid surface -- increases with flow velocity and is worse for fluids with low electrical conductivity, which includes most hydrocarbons, ketones, alcohols, and aromatic solvents. In a standard PTFE hose, that charge has nowhere to go: PTFE's dielectric strength (50-120 kV/mm) that makes it an excellent electrical insulator for cable applications is precisely what allows charge to accumulate on the inner bore during fluid transfer, rather than bleeding away safely.
Where the Risk Is Highest
The combination that matters is low-conductivity fluid plus high flow velocity plus a flammable vapour headspace. Fuel transfer, solvent dosing in paint and coating lines, powder-conveying pneumatic systems, and pharmaceutical API solvent recovery are the applications where this combination shows up most often -- and where ATEX Zone 1/2 or equivalent classified-area requirements typically apply.
What "Conductive" Actually Means for PTFE Hose

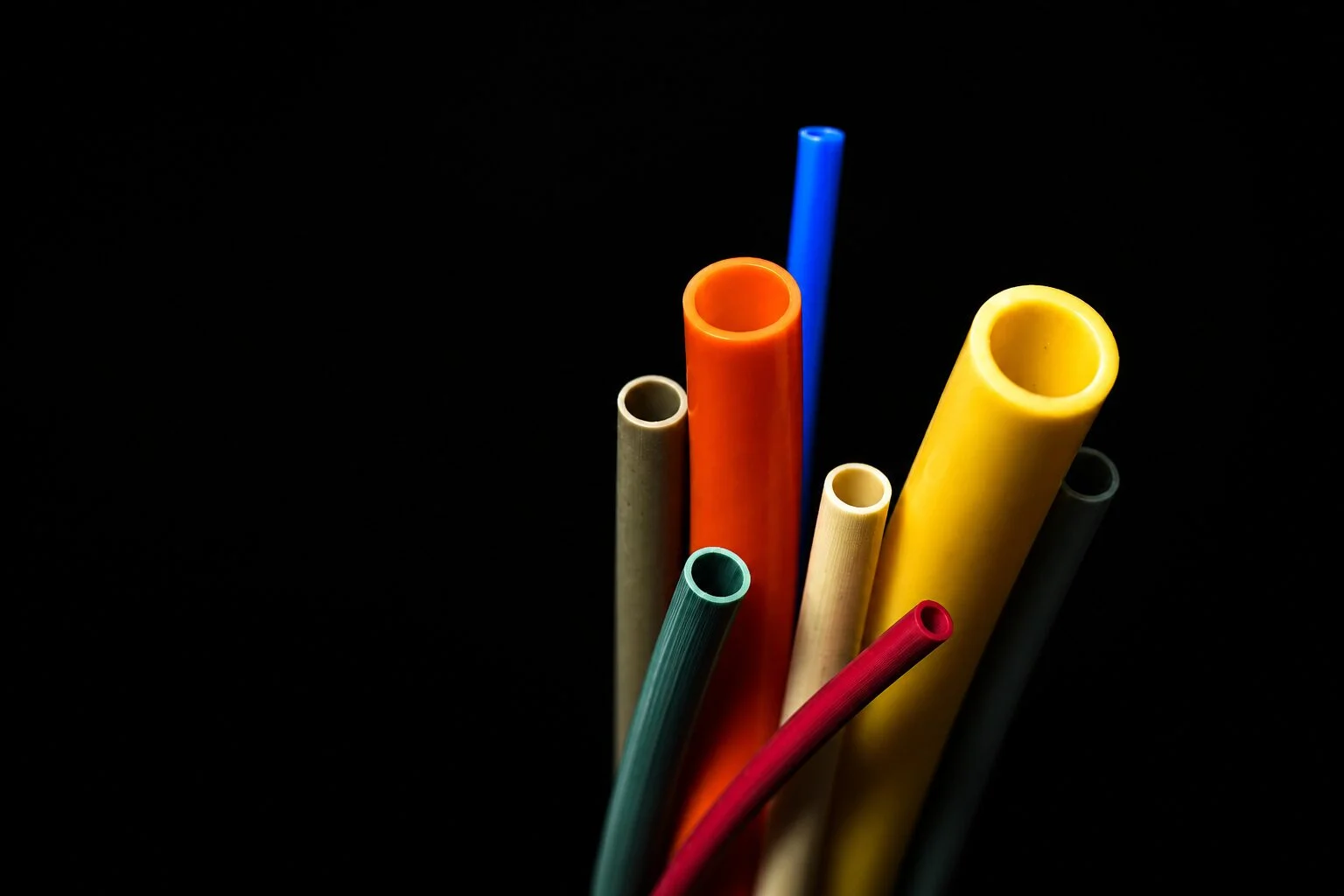

Static-dissipative PTFE hose uses a carbon-black-filled PTFE inner liner rather than the standard virgin-white compound. The carbon loading gives the material genuine bulk electrical conductivity -- surface resistivity typically below 10⁶ Ω, compared to the effectively infinite resistivity of standard PTFE -- while retaining PTFE's chemical resistance and temperature range essentially unchanged. The trade-off is a black rather than natural-white or clear liner, which is a purely cosmetic difference that sometimes surprises buyers expecting the transparency of standard PTFE.
| Property | Standard PTFE | Conductive (Static-Dissipative) PTFE |
|---|---|---|
| Surface resistivity | Effectively infinite (insulator) | <10⁶ Ω (conductive) |
| Colour | Natural white / translucent | Black (carbon-loaded) |
| Chemical resistance | Near-universal | Near-universal (unchanged by carbon filler) |
| Temperature range | −200°C to +260°C | −200°C to +260°C (unchanged) |
| Typical use case | General chemical transfer, low velocity | Fuel, solvent, powder transfer in classified areas |
Grounding: The Part That Gets Missed

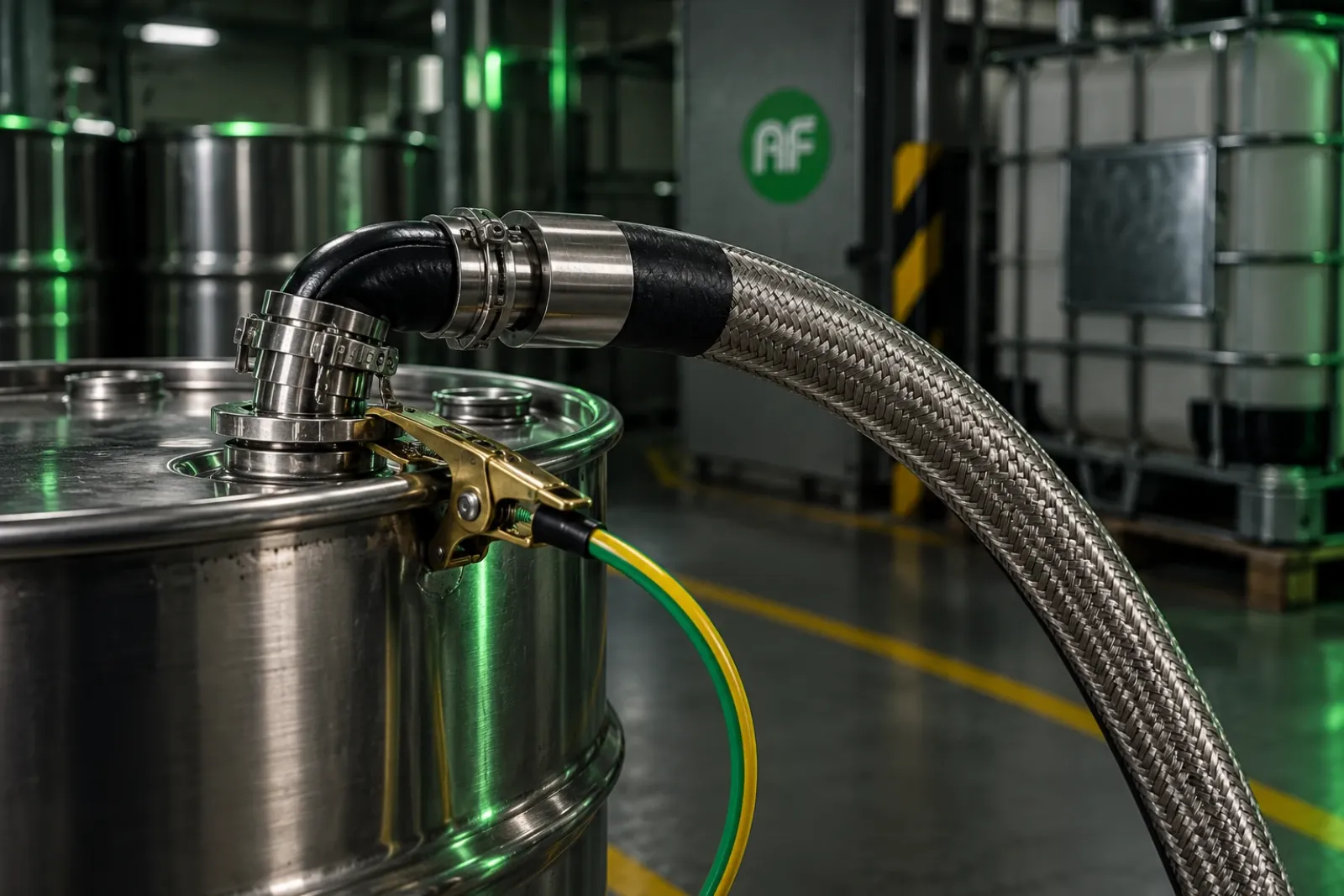

A conductive hose liner only dissipates static charge if it's actually connected to ground. That means the end fittings and any coupling hardware need continuous electrical bonding from the hose liner through to the equipment on both ends -- a conductive hose bolted between two ungrounded or poorly-bonded fittings doesn't achieve the safety benefit the liner is designed to provide. This is a system-level requirement, not something a hose alone solves in isolation, and it's worth confirming as part of the installation, not just the procurement spec.
When Standard PTFE Hose Is Genuinely Fine
Not every application needs conductive hose. Low-velocity transfer of higher-conductivity fluids (most aqueous solutions, for instance) generates comparatively little static charge, and outside a classified hazardous area, the consequence of that charge is generally a nuisance rather than an ignition risk. Specifying conductive hose everywhere by default adds cost without a corresponding safety benefit -- the decision should follow an actual hazardous-area classification or a documented flow-velocity/fluid-conductivity assessment, not a blanket policy.
Advanced Fluro: What We Actually Offer
Advanced Fluro Private Limited manufactures conductive PTFE tube and hose from our ISO 9001:2015 certified facility in Vasai East, Mumbai:
- Conductive PTFE hose: carbon-loaded inner liner with SS304 braid, surface resistivity <10⁶ Ω, built to ATEX/IEC 60079 relevant guidance for classified-area fuel and solvent transfer.
- Conductive PTFE tube: the same carbon-loaded compound in unbraided tube form for lower-pressure dosing and pneumatic conveying lines.
- Standard SAE 100R14 hose construction underneath the conductive liner, so pressure ratings and fitting compatibility match our standard braided hose range.
- In-house extrusion, meaning custom bore sizes and fitting configurations for conductive-grade product don't require a separate overseas order.
We supply fuel transfer, solvent dosing, powder conveying, and pharmaceutical solvent recovery customers who need documented static-dissipative performance, not just a black-coloured hose.
Frequently Asked Questions
How do I know if my application needs conductive PTFE hose?
If the fluid is a low-conductivity solvent or fuel, flow velocity is significant, and the installation is in or near a classified hazardous area (ATEX Zone 1/2 or equivalent), conductive hose is the appropriate choice. A formal hazardous-area classification study is the correct basis for the decision on any regulated installation.
Does conductive PTFE hose have different chemical resistance than standard PTFE?
No -- the carbon-black filler doesn't meaningfully change PTFE's chemical inertness. The conductive grade retains essentially the same broad chemical compatibility as standard virgin PTFE.
Is grounding the fittings enough, or does the whole system need to be bonded?
Both ends need continuous electrical bonding, from the hose's conductive liner through the fittings to the grounded equipment on each side. A conductive hose with an ungrounded connection on either end doesn't provide the intended static-dissipation function.
What surface resistivity is required for static-dissipative hose?
Below 10⁶ Ω is the typical target for static-dissipative PTFE hose used in classified-area service, though the specific requirement can vary by application and applicable standard -- confirm against your site's hazardous-area classification documentation.
