Not all PTFE hoses are equal. In semiconductor fabs, OLED and micro-LED display manufacturing and pharmaceutical synthesis, standard industrial hoses fail cleanroom validation. A true high purity PTFE hose needs strict manufacturing controls, careful material selection and rigorous leak testing.
Virgin PTFE vs Recycled Grades
Industrial-grade PTFE hoses often use reprocessed resin that contains micro-inclusions, surface voids and volatile organic compounds (VOCs). Under high vacuum or UHP gas exposure, these impurities outgas or shed as micro-particles. See our comparison of virgin vs recycled PTFE.
Advanced Fluro uses only 100% medical- or semiconductor-grade virgin or chemically modified PTFE. This delivers:
- Ultra-low extractables: meets FDA, USP Class VI and SEMI cleanliness parameters.
- Smooth inner bore: Ra values optimised to prevent particle traps and bacterial growth.
- Better permeation resistance: higher resin density slows small gas molecules such as helium and hydrogen.
Cleanroom Manufacturing and QA Flow

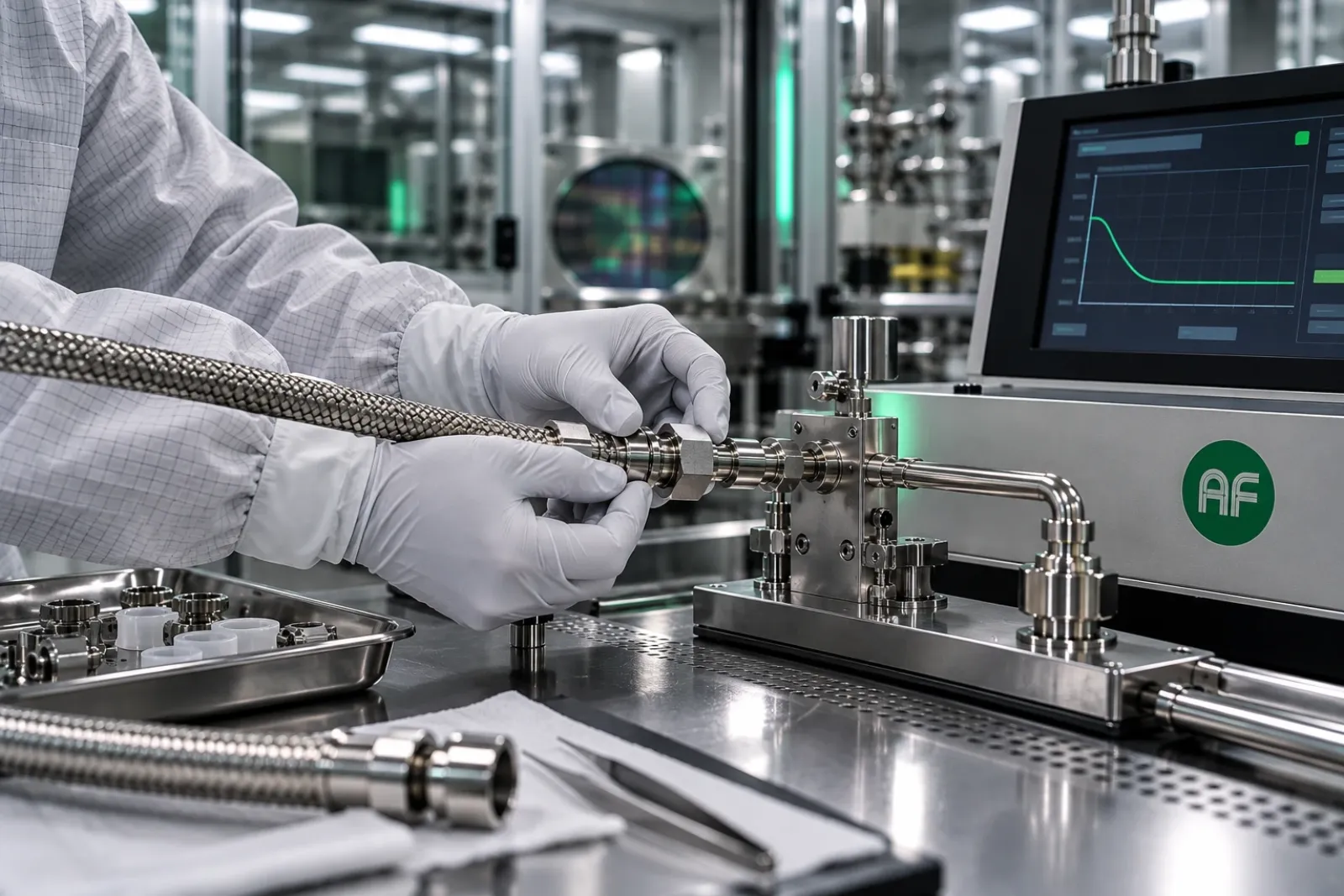

To make sure a high purity PTFE SS braided hose achieves true UHP performance, assembly takes place in certified ISO Class 5 and Class 7 cleanrooms, in six stages:
- Virgin PTFE extrusion and stainless steel braiding.
- Cleanroom precision cutting and swaging.
- High-pressure flushing with ultra-pure water (UPW).
- Purging and drying with heated high-purity nitrogen (N2).
- Helium leak testing to a 1 × 10⁻⁹ atm·cc/s threshold.
- Double cleanroom vacuum packaging.
Helium Mass Spectrometer Leak Testing
Every hose line undergoes high-sensitivity helium mass spectrometer leak detection, confirming leak rates tighter than 1 × 10⁻⁹ atm·cc/s. This prevents gas leaks and atmospheric moisture ingress into process lines.
Frequently Asked Questions
Why does recycled PTFE fail in UHP applications?
Reprocessed resin can contain micro-inclusions, voids and VOCs that outgas or shed particles under vacuum or UHP gas exposure.
What leak rate does helium testing confirm?
Leak rates tighter than 1 × 10⁻⁹ atm·cc/s, measured with a helium mass spectrometer.
Why is the hose flushed with ultra-pure water and nitrogen?
UPW flushing removes particulates from the bore, and heated high-purity nitrogen purges and dries it before packaging.
Talk to Advanced Fluro
Need certified UHP hose assemblies? Request a quote or technical consultation, call +91 96990 55600 or email contact@aftubes.com.
